How to add a router to the connectivity suite

The following artical describes how to add any netmodule router to a connectivity suite instance.

1.Running Connectivity Suite instance

• - valid device license
• - opened port 50041 (provisioning server default port)

2.Netmodule router with

• - Latest software 4.8.0.105 or higher
• - Internet access
• - SSH serives running on port 22 (default) mandatory

1.Download the current user-config from the unit you want to add to your instance

2.Add the user-config to your instance as shown:

3.The connecticity suite automatically added the provisioning openvpn config parameter to your config. This is mandatory to connect to you instance.Download the provisiong config as shown:

4.Upload the provisioning user-config back to your router to apply the openvpn config parameter. Please use the shown “configuration mode”:

5. After all this steps the router suppose to appear on the provisioning dashboard section

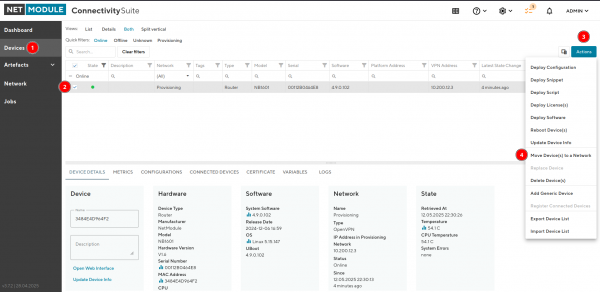

1. After the router successfully has been added to the provisioning you can easily assign a router to a VPN Server. Follow the shown steps and select a VPN Server:

The connectivity suite deploy the new setting via the existing provisioning openvpn tunnel. This might take a few seconds. After this step you have successfully added a router to a connectivity suite
