How to add a routers to the connectivity suite

The following artical detailed describe how to add any netmodule router to a connectivity suite instance

1.Running Connectivity Suite instance

• - valid device license
• - open port 50041 (provisioning server default port)

2.Netmodule router with

• - Latest software 4.8.0.105 or higher
• - Internet access
• - SSH running on port 22 (default) mandatory

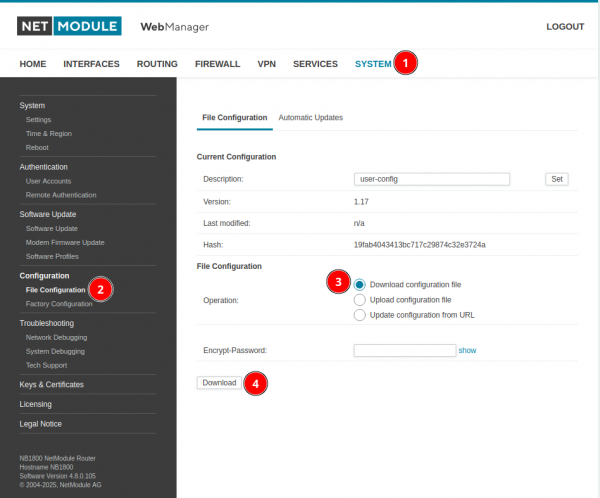

• 1.Download the current user-config from the unit you want to add to your instance
•

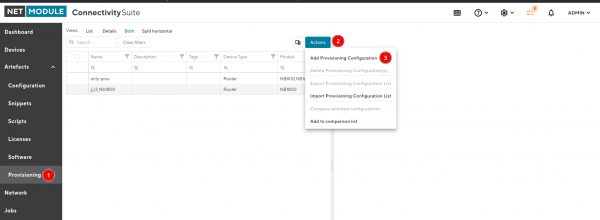

• 2.Add the user-config to your instance as shown:
•

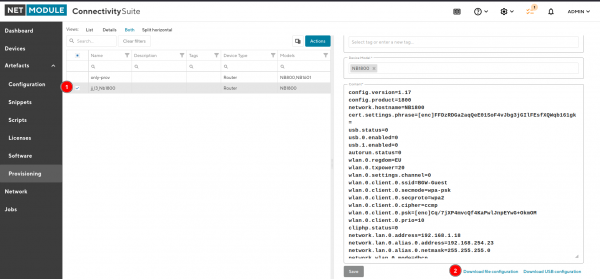

• 3.The connecticity suite automatically added the provisioning openvpn config parameter to your config. This is mandatory to connect to you instance. Download the provisiong config as shown:
•

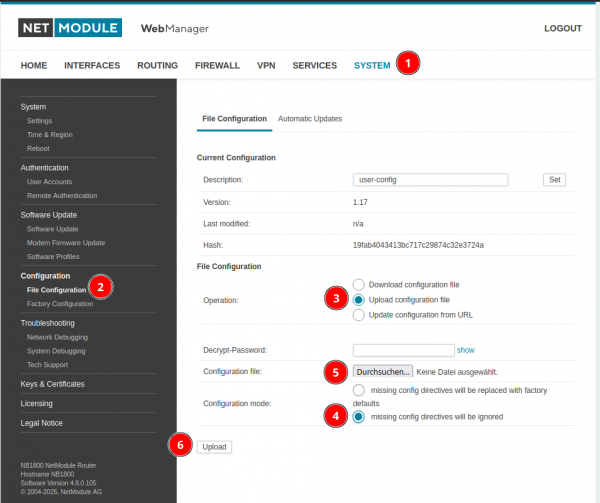

• 4.Upload the provisioning user-config back to your router to apply the openvpn config parameter. Please use the shown mode:
•
• 5. After all this steps the router suppose to appear on the provisioning dashboard section
